TYPHON STOMP 502 PRO Mini Tracked Skid Steer – 22.1 HP Honda GX690 & 10.6 GPM Hydraulics

Name: TYPHON STOMP 502 PRO Mini Tracked Skid Steer – 22.1 HP Honda GX690 & 10.6 GPM Hydraulics - Asia Machinery
SKU: TYPH-0502G-Pro
Price: 8083.95 USD
Availability: InStock

0 out of 5

Original price was: $8,982.17.Current price is: $8,083.95.

Compact 1,962 lb stand-on tracked mini skid steer with 22.1 HP Honda GX690 V-Twin, 838 lb operating load, 10.6 GPM hydraulics and a 40.7 in width.

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

The STOMP 502 PRO delivers accessible skid-steer performance for landscaping, residential construction and tight jobsite access. Its stand-on platform, triangle rubber tracks and three-pump hydraulic system support responsive material handling and compatible attachments.

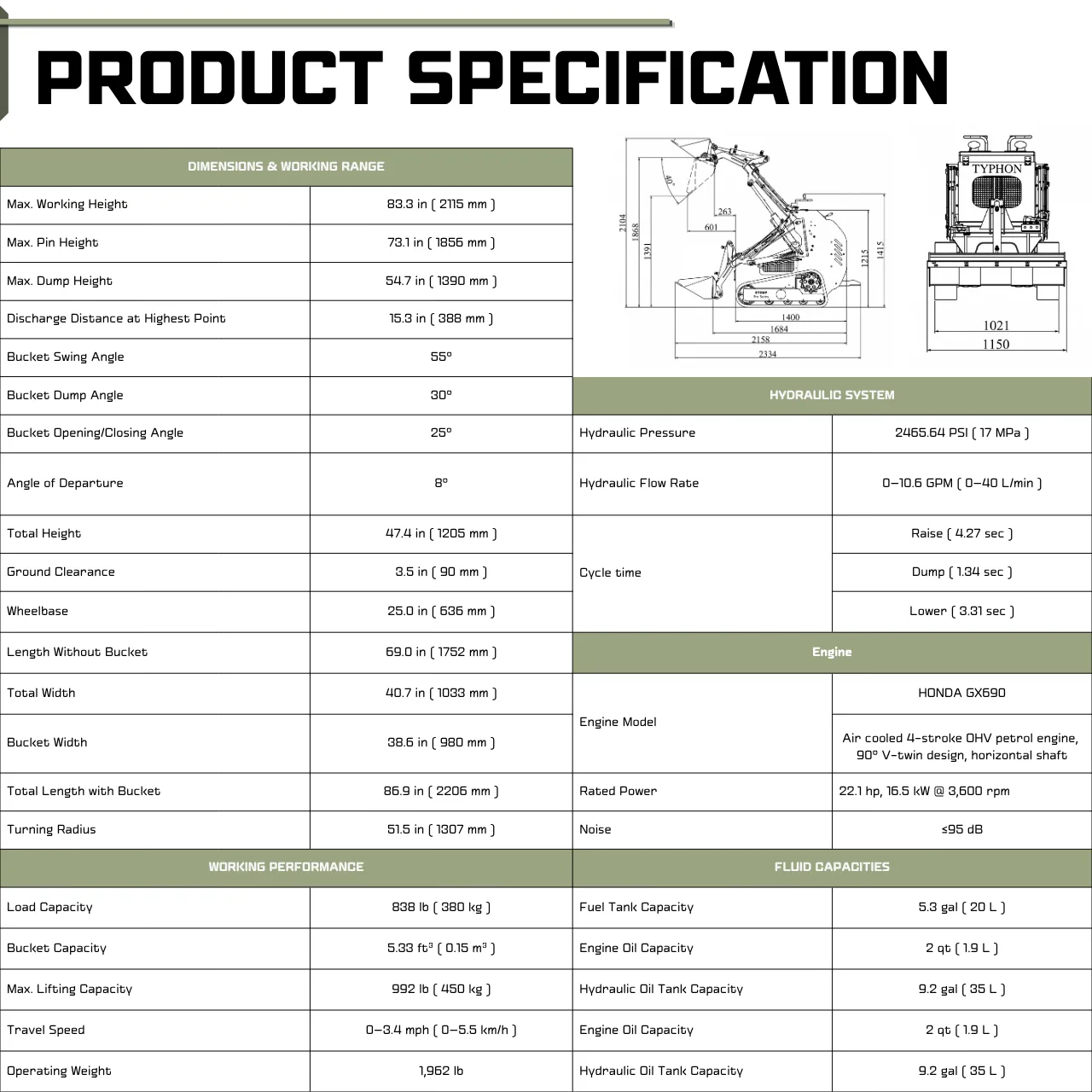

Technical Specifications & Features

Operating weight / load: 1,962 lb operating weight; 838 lb operating load; 992 lb maximum lifting force

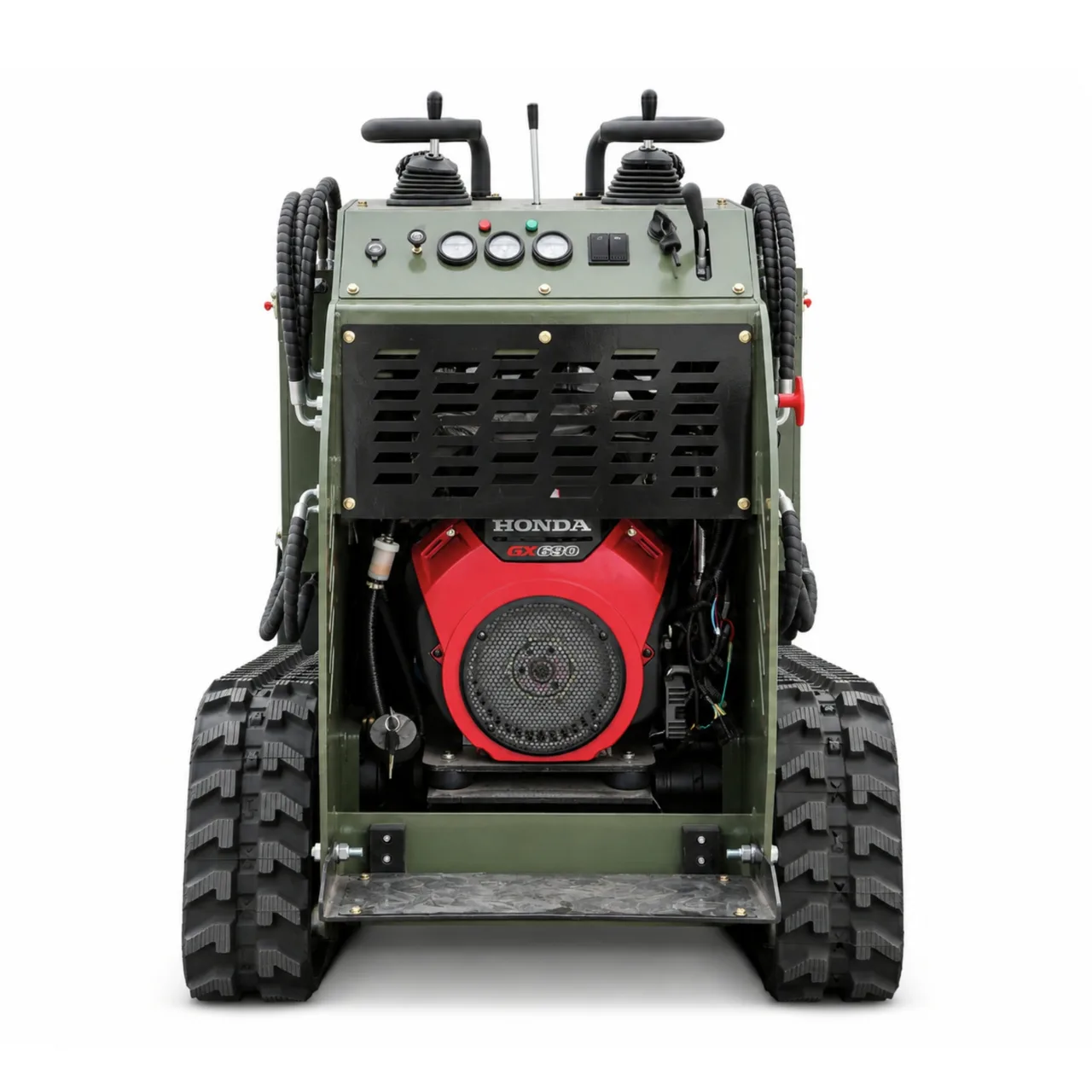

Engine: Honda GX690 air-cooled V-Twin gasoline; 22.1 HP at 3,600 RPM
Hydraulics: 3-pump / 3-valve system; 10.6 GPM flow at up to 2,465.64 PSI
Bucket: 5.33 ft³ capacity
Lift geometry: 83.3 in maximum working height; 54.7 in dump height
Size: 40.7 in overall width for narrow gates and paths
Undercarriage: Triangle rubber tracks; 360° pivot steering
Travel: Up to 3.4 mph
Tanks: 5.33 gal fuel; 9.2 gal hydraulic oil
Operator station: Stand-on platform, dual joysticks, digital display and front LED work lights
Attachment support: Hydraulic tools such as compatible trenchers, augers and grapples
